HDPE Pipe For Drinking Water

Products

HDPE Pipe For Drinking Water

Inquiry Now

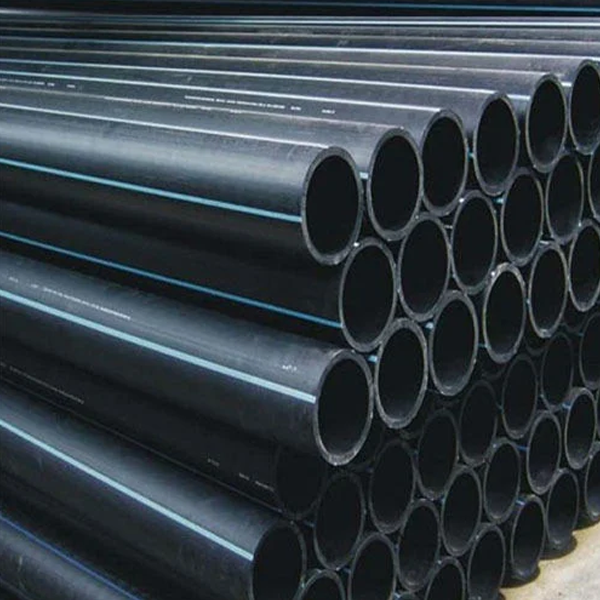

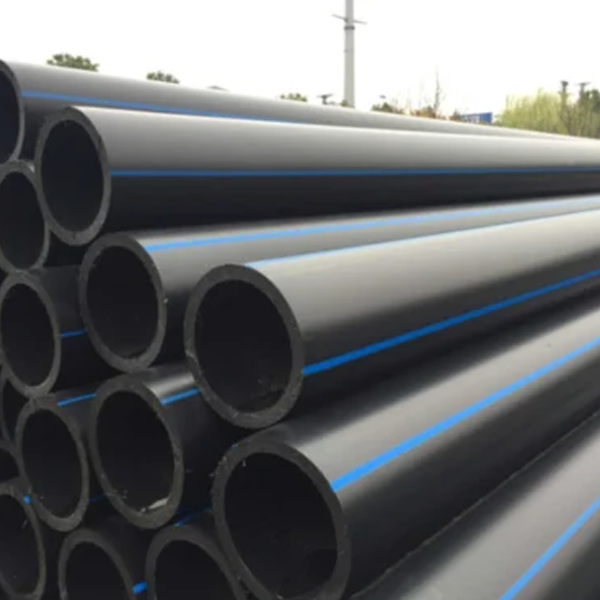

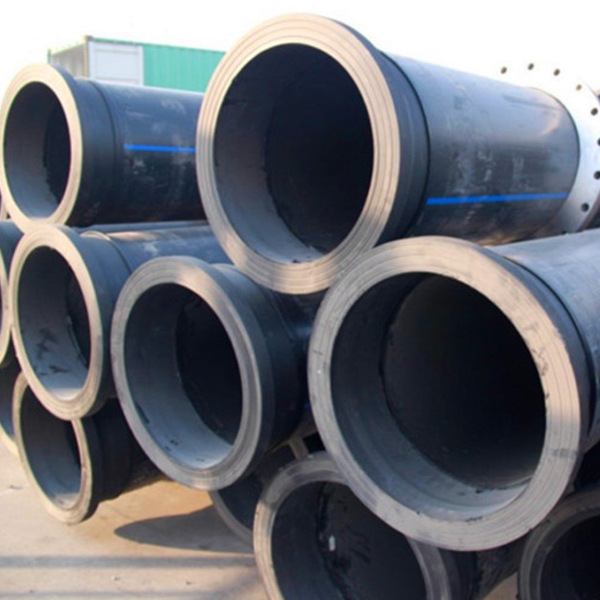

HDPE Pipe For Drinking Water
HDPE Pipe For Drinking Water
HDPE Pipe For Drinking Water
HDPE Pipe For Drinking Water
  • Diameter: DN20-2400mm (1/2 inch-94 inch).
  • Pressure Class: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
  • Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.
  • Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
  • Delivery: 5-10 days depending on the total quantity.
  • Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.
  • Customization: Specifications and sizes can be customized according to requirements.
HDPE Pipe Feature

HDPE Pipe Feature

  • HDPE pipe for drinking water have excellent flexibility and durability, with an expected service life of up to 60 years.
  • HDPE water pipe has excellent corrosion and chemical resistance and can resist rust, scaling, and chemical attack by disinfectants such as chlorine.
  • HDPE pipe for drinking water is non-toxic and safe, and will not leak harmful substances, making it an ideal choice for drinking water.
  • HDPE pipe for water supply are light, smooth, have low friction resistance, are easy to install and maintain, and are connected by butt fusion connecting.

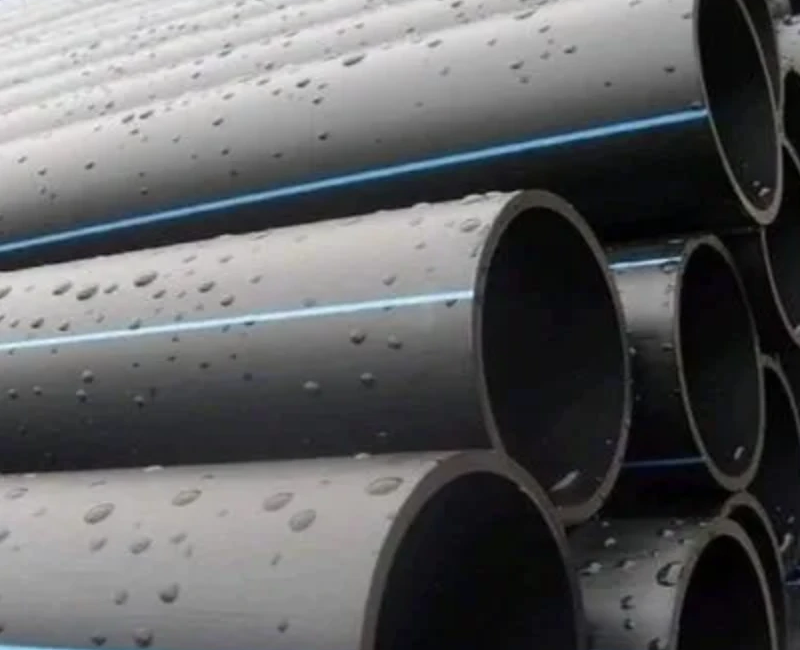

HDPE Water Pipe Application

HDPE Water Pipe Application

  • HDPE pipe for drinking water is used to transport drinking water from treatment plants to residential, commercial and industrial areas, as well as long distance water transportation in rural areas.
  • HDPE pipe for drinking water is used for domestic water supply connections, connecting city water lines to individual residences using safe, leak-free fittings.
  • Due to the non-toxic and inert material properties of HDPE water pipe, treated water can be safely transported.
  • HDPE water pipes are suitable for upgrading and updating urban infrastructure.

Specification & Dimension

Nominal Wall Thickness (mm)
Standard Dimension Ratio SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26 SDR 33 SDR 41
PE 80 Nominal Pressure 1.6MPa (PN16) 1.25MPa (PN12.5) 1.0MPa (PN10) 0.8MPa (PN8) 0.6MPa (PN6) 0.5MPa (PN5) 0.4MPa (PN4) 0.32MPa (PN3.2)
PE 100 Nominal Pressure 2.0MPa (PN20) 1.6MPa (PN16) 1.25MPa (PN12.5) 1.0MPa (PN10) 0.8MPa (PN8) 0.6MPa (PN6) 0.5MPa (PN5) 0.4MPa (PN4)
Nominal External Diameter
16 2.3
20 2.3 2.3
25 3.0 2.3 2.3
32 3.6 3.0 2.4 2.3
40 4.5 3.7 3.0 2.4 2.3
50 5.6 4.6 3.7 3.0 2.4 2.3
63 7.1 5.8 4.7 3.8 3.0 2.5
75 8.4 6.8 5.6 4.5 3.6 2.9
90 10.1 8.2 6.7 5.4 4.3 3.5
110 12.3 10 8.1 6.6 5.3 4.2
125 14 11.4 9.2 7.4 6 4.8
140 15.7 12.7 10.3 8.3 6.7 5.4
160 17.9 14.6 11.8 9.5 7.7 6.2
180 20.1 16.4 13.3 10.7 8.6 6.9
200 22.4 18.2 14.7 11.9 9.6 7.7
225 25.2 20.5 16.6 13.4 10.8 8.6
250 27.9 22.7 18.4 14.8 11.9 9.6
280 31.3 25.4 20.6 16.6 13.4 10.7
315 35.2 28.6 23.2 18.7 15.0 12.1 9.7 7.7
355 39.7 32.2 26.1 21.1 16.9 13.6 10.9 8.7
400 44.7 36.3 29.4 23.7 19.1 15.3 12.3 9.8
450 50.3 40.9 33.1 26.7 21.5 17.2 13.8 11
500 55.8 45.4 36.8 29.7 23.9 19.1 15.3 12.3
560 62.5 50.8 41.2 33.2 26.7 21.4 17.2 13.7
630 70.3 57.2 46.3 37.4 30.0 24.1 19.3 15.4
710 79.3 64.5 52.2 42.1 33.9 27.2 21.8 17.4
800 89.3 72.6 58.8 47.4 38.1 30.6 24.5 19.6
900 81.7 66.2 53.3 42.9 34.4 27.6 22
1000 90.2 72.5 59.3 47.7 38.2 30.6 24.5
1200 88.2 67.9 57.2 45.9 36.7 29.4
1400 102.9 82.4 66.7 53.3 42.9 34.3
1600 117.6 94.1 76.2 61.2 49 39.2
1800 105.9 85.7 69.1 54.5 43.8
2000 117.6 95.2 76.9 60.6 48.8
2250 107.2 86 70 55
2500 119.1 96.5 77.7 61.2
Customized according to customer needs

HDPE Pipe Introduction

Products Details Information Company / Factory Strength
Product Name High Density Polyethylene (HDPE) Pipe for drinking water Production Capacity 180*40ft containers/month
Brand Abbonite Plastics Pvt. Ltd. Pipeline (or OEM) Sample Free sample available
Dia. Ranges DN20-2500mm (1/2 inch – 98 inch) Delivery Time 5–10 days, depending on the quantity
Pressure Class From PN4 to PN32 for pipe, PN10 to PN32 for fitting Test / Inspection National standard laboratory, Pre-delivery inspection
Standards ISO 4427, ASTM 3035, ASTM F714, EN 12201, AS/NZS 4130, DIN 8074, GOST 18599, DIPS, IPS Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Raw Material PE80, PE100, PE4710, PE3608, PE100RC... Management Effective 8S management system
Color Black with blue stripes, Blue or other colors Warranty 60 years with normal use
Packing 5.8m or 11.8m/length, 100–200m/roll for pipe. Cartons or bags for fitting (customizable) Quality QA & QC system, Ensure traceability of each process
Matching Products HDPE Butt fusion welding fitting, Socket fusion, Electrofusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

HDPE Pipe Indicator

Test Item Indicator Test Method
Melt Mass Flow Rate (g/10 min) MFR change before and after processing ≤ 20% GB/T 3682.1-2018
Oxidation Induction Time ≥ 20 min GB/T 19466.6-2009
Longitudinal Retraction Rate ≤ 3% GB/T 6671-2001
Carbon Black Content 2.0% ～ 2.5% GB/T 13021-1991
Carbon Black Dispersion ≤ Grade 3 GB/T 18251-2000
Pigment Dispersion — —
Ash Content ≤ 0.1% GB/T 9345.1-2008
Elongation At Break ≥ 350% GB/T 8004.3-2003
Resistance to Slow Crack Growth en ≤ 5 mm (Cone Test) < 10 mm / 24h GB/T 19279-2003
Resistance to Slow Crack Growth en ＞ 5 mm (Incision Test) No damage, no leakage GB/T 18476-2001
Hydrostatic Pressure Strength 20℃, 100h No damage, no leakage GB/T 6111-2003
Hydrostatic Pressure Strength 80℃, 165h No damage, no leakage GB/T 6111-2003
Hydrostatic Pressure Strength 280℃, 1000h No damage, no leakage GB/T 6111-2003
Note: The indicators refer to PE pipe material quality control standards.

HDPE Pipe Advantages

1. Versatile Applications
Answer :- Abbonite Plastics Pvt. Ltd. PE pipes are widely used across multiple sectors, including water supply, gas distribution, sewage systems, irrigation, and industrial piping.
2. Long Service Life & High Flow Efficiency
Answer :- Designed for longevity, PE HDPE pipes provide minimal friction loss and high flow efficiency, with a service life of 50–60 years or more under normal conditions.
3. Easy to Install & Transport
Answer :- Lightweight and flexible, Abbonite Plastics Pvt. Ltd. PE HDPE pipes are easy to handle and install, reducing overall labor and transportation costs while accelerating project timelines.
4. Top-Notch Strength & Toughness
Answer :- Engineered for resilience, these pipes withstand high pressure and tough environmental conditions, ensuring stable performance in demanding applications.
5. Minimal Maintenance
Answer :- Resistant to rust, corrosion, scaling, and chemical erosion, PE HDPE pipes require very little maintenance, leading to long-term operational savings.
6. Exceptional Flexibility
Answer :- With a bending radius up to 30 times smaller than traditional pipes, PE HDPE pipes can adapt to varied terrain and tight spaces without cracking or compromising integrity.
7. Competitive Pricing
Answer :- Abbonite Plastics Pvt. Ltd. offers cost-effective PE HDPE pipe solutions, tailored to your specific project requirements without compromising quality.

Precision-Engineered Pipes and Fittings for Every Application

Abbonite Plastics Pvt. Ltd. combines ISO-certified quality and cutting-edge technology to produce HDPE, MDPE, PPR pipes, and advanced electrofusion fittings. Our focus on premium materials ensures products that meet global standards while offering excellent value in Indian markets and beyond.
