HDPE Pipe For Irrigation

Products

HDPE Pipe For Irrigation

Inquiry Now

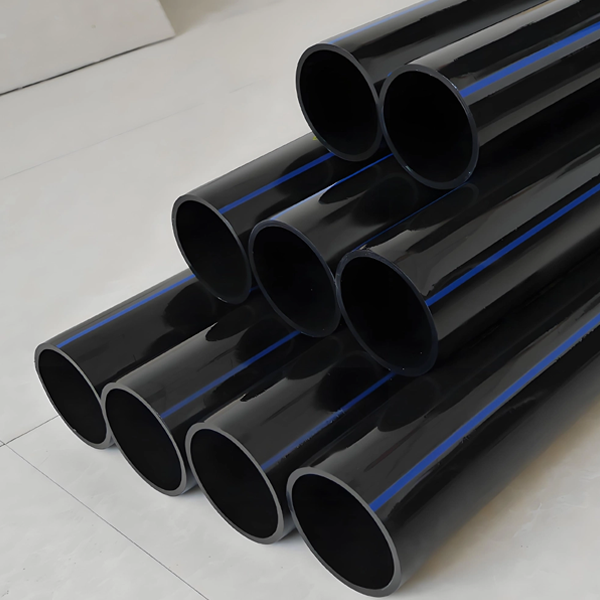

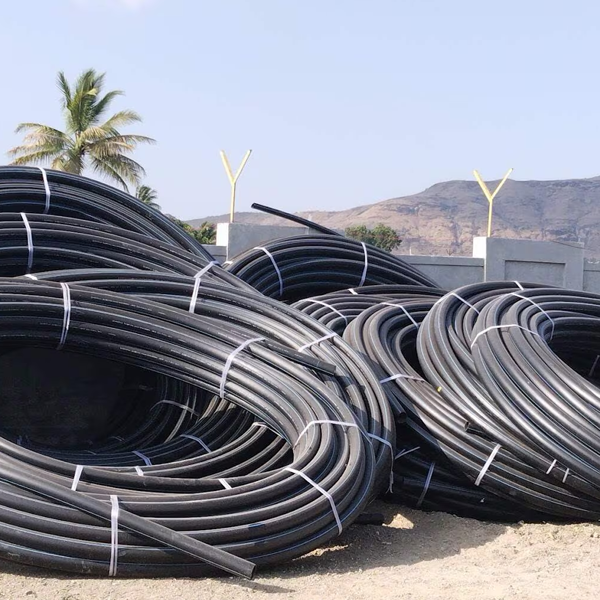

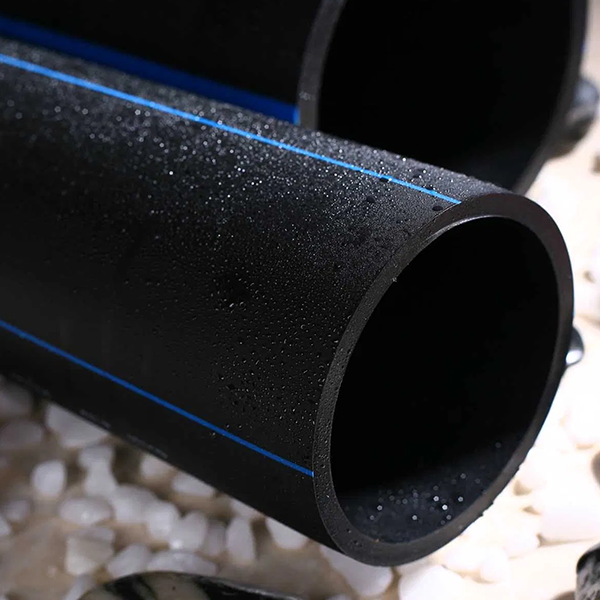

HDPE Pipe For Irrigation
HDPE Pipe For Irrigation
HDPE Pipe For Irrigation
HDPE Pipe For Irrigation
  • Diameter : DN20-2000mm (1/2 inch-80 inch).
  • Standard Dimension Ratio : SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
  • Pressure Class : PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.
  • Packing : 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
  • Delivery : 5-10 days depending on the total quantity.
  • Product inspection : Raw material inspection; Finished product inspection; Third party inspection upon clients request.
  • Customization : Specifications and sizes can be customized according to requirements.

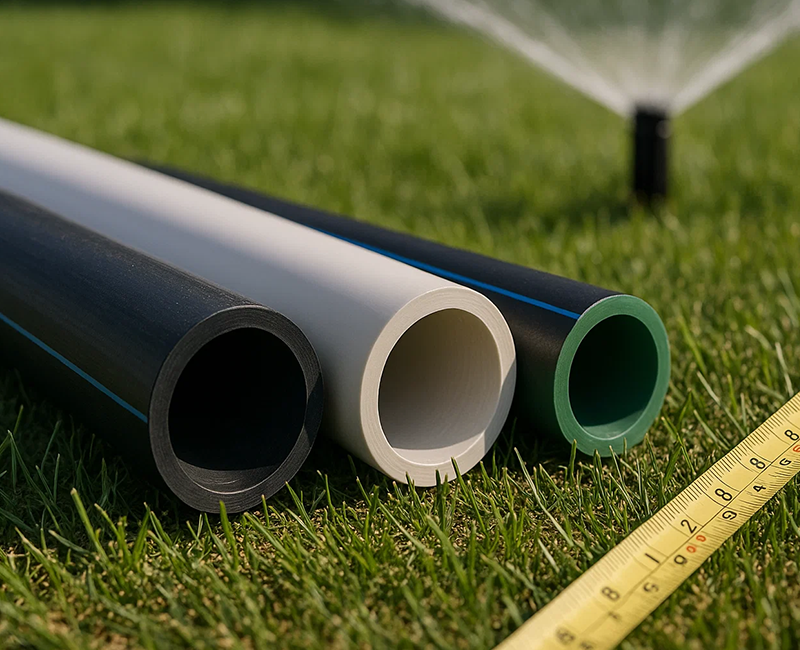

HDPE Irrigation Pipe Feature

HDPE Irrigation Pipe Feature

  • HDPE pipes offer impact resistance and durability for high pressure applications.
  • PE 100 pipe has excellent wear resistance and scratch resistance, and can keep the surface intact even under harsh conditions.
  • HDPE pipes have strong impact resistance, effectively resist external physical damage and extend service life.
  • HDPE irrigation pipes are smooth, have low friction resistance, are easy to install and maintain.
  • HDPE pipes are made from non-toxic and recyclable materials with a lower carbon footprint.

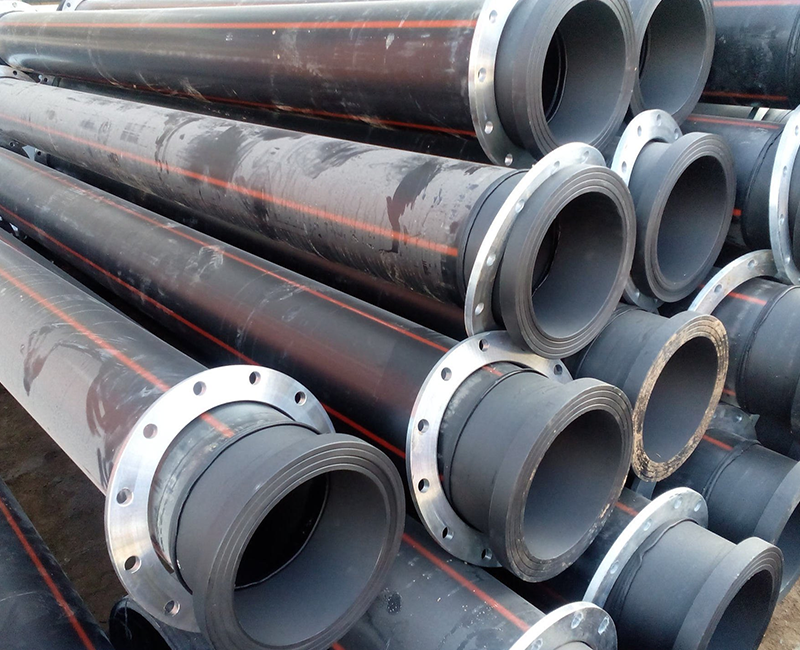

HDPE Pipe Application

HDPE Pipe Application

  • Agricultural Water Hose is widely used in farmland, orchards, vegetable bases and other places to transport water to the fields and achieve precise irrigation.
  • HDPE drip irrigation pipe is connected with drip irrigation belt and sprinkler system and is suitable for water-saving and efficient irrigation projects.
  • HDPE pipe drip irrigation​ is used for the layout of irrigation waterways inside the greenhouse. It is pressure-resistant and anti-aging, ensuring a stable water supply.
  • HDPE irrigation pipe is used in green irrigation systems in parks, sports fields, golf courses, and residential areas.

Specification & Dimension

HDPE Pipe For Irrigation
ASTM F714 SDR SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4
Nominal Pressure (PE 100) PN5 (0.5Mpa) PN6 (0.6Mpa) PN8 (0.8Mpa) PN10 (1.0Mpa) PN12.5 (1.25Mpa) PN16 (1.6Mpa) PN20 (2.0Mpa) PN25 (2.5Mpa)
Nominal Size DN (mm) Equiv Size (in) Wall Thickness (mm)
16 2 2.3
20 0.79 1.5 2 2.3 3
25 0.98 0.76 0.8 1.2 1.5 2 2.3 3 3.5
32 1.26 0.97 1 1.5 2 2.4 3 3.6 4.4
40 1.57 1.21 1.2 2 2.4 3 3.7 4.5 5.5
50 1.97 1.52 2 2.4 3 3.7 4.6 5.6 6.9
63 2.48 1.91 2.5 3 3.8 4.7 5.8 7.1 8.6
75 2.95 2.27 2.9 3.6 4.5 5.6 6.8 8.4 10.3
90 3.54 2.73 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4.33 3.33 4.2 5.3 6.6 8.1 10 12.3 15.1
125 4.92 3.79 4.8 6 7.4 9.2 11.4 14 17.1
140 5.51 4.24 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6.3 4.85 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 7.09 5.45 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 7.87 6.06 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8.86 6.82 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 9.84 7.58 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 11.02 8.48 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12.4 9.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 13.98 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 15.75 12.3 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 17.72 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 19.69 15.3 19.1 23.9 29.7 36.8 45.4 55.8 67.6
560 22.05 17.2 21.4 26.7 33.2 41.2 50.8 62.5 75.7
630 24.8 19.3 24.1 30 37.4 46.3 57.2 70.3 85.1
710 27.95 21.8 27.2 33.9 42.1 52.2 64.5 79.3 95.9
800 31.5 24.5 30.6 38.1 47.4 58.8 72.6 89.3
900 35.43 27.6 34.4 42.9 53.3 66.2 81.7
1000 39.37 30.6 38.2 47.7 59.3 72.5 90.2
1200 47.24 36.7 45.9 57.2 67.9 88.2
1400 55.12 42.9 53.5 66.7 82.4 102.9
1600 62.99 61.2 76.2 94.1 117.6
1800 70.86 69.1 85.7 105.9
2000 78.74 76.9 95.2 117.6

HDPE Irrigation Pipe Introduction

Products details information Company/Factory Strength
Product Name High Density Polyethylene (HDPE) Pipe for Irrigation & Fish Farming Production Capacity 20000 sq.mProduction Capacity
Brand Abbonite Plastics HDPE Pipe (or OEM) Sample Free sample available
Dia. ranges DN20-2000mm (1/2 inch-80 inch) Delivery time 5-10 days, depending on the quantity
Pressure Class SDR17 ~ SDR6; PN10 ~ PN32 Test/Inspection National standard laboratory, Pre-delivery inspection
Standards ISO 4437, ASTM D3035, ASTM D2513, EN 1555, GB/T 15558, AS/NZS 4130, GOST 18599 Certificates ISO9001, ISO14001, ISO45001, CE...
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Management Effective 8S management system
Color Black with blue stripes, or other colors you want Warranty 60 years with normal use
Packing 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fittings (customizable) Quality QA & QC system, Ensure traceability of each process
Application Agricultural irrigation, Mining greening irrigation, Landscape irrigation... Employees More than 200
Matching products Butt fusion HDPE pipe fittings, Socket fusion HDPE pipe fittings, Electrofusion HDPE pipe fittings, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

HDPE Pipe Indicator

Test Item Indicator Company/Factory Strength
Melt Mass Flow Rate (g/10 min) MFR change before and after processing ≤ 20% GB/T 3682.1-2018
Oxidation Induction Time ≥ 20 min GB/T 19466.6-2009
Longitudinal Retraction Rate ≤ 3% GB/T 6671-2001
Carbon Black Content 2.0% ～ 2.5% GB/T 13021-1991
Carbon Black Dispersion ≤ Grade 3 GB/T 18251-2000
Pigment Dispersion — —
Ash Content ≤ 0.1% GB/T 9345.1-2008
Elongation At Break ≥ 350% GB/T 8004.3-2003
Resistance to Slow Crack Growth
en ＞ 5 mm (Incision Test)		 No damage, no leakage GB/T 18476-2001
Hydrostatic Pressure Strength
20℃, 100h		 No damage, no leakage GB/T 6111-2003
Hydrostatic Pressure Strength
80℃, 165h		 No damage, no leakage GB/T 6111-2003
Hydrostatic Pressure Strength
280℃, 1000h		 No damage, no leakage GB/T 6111-2003
Note : The above indicators refer to PE pipe material quality control standards.

HDPE Pipe Advantages

1. Versatile Applications
Answer :- Abbonite Plastics Pvt. Ltd. PE pipes are widely used across multiple sectors, including water supply, gas distribution, sewage systems, irrigation, and industrial piping.
2. Long Service Life & High Flow Efficiency
Answer :- Designed for longevity, PE HDPE pipes provide minimal friction loss and high flow efficiency, with a service life of 50–60 years or more under normal conditions.
3. Easy to Install & Transport
Answer :- Lightweight and flexible, Abbonite Plastics Pvt. Ltd. PE HDPE pipes are easy to handle and install, reducing overall labor and transportation costs while accelerating project timelines.
4. Top-Notch Strength & Toughness
Answer :- Engineered for resilience, these pipes withstand high pressure and tough environmental conditions, ensuring stable performance in demanding applications.
5. Minimal Maintenance
Answer :- Resistant to rust, corrosion, scaling, and chemical erosion, PE HDPE pipes require very little maintenance, leading to long-term operational savings.
6. Exceptional Flexibility
Answer :- With a bending radius up to 30 times smaller than traditional pipes, PE HDPE pipes can adapt to varied terrain and tight spaces without cracking or compromising integrity.
7. Competitive Pricing
Answer :- Abbonite Plastics Pvt. Ltd. offers cost-effective PE HDPE pipe solutions, tailored to your specific project requirements without compromising quality.

Precision-Engineered Pipes and Fittings for Every Application

Abbonite Plastics Pvt. Ltd. combines ISO-certified quality and cutting-edge technology to produce HDPE, MDPE, PPR pipes, and advanced electrofusion fittings. Our focus on premium materials ensures products that meet global standards while offering excellent value in Indian markets and beyond.
