HDPE Pipe For Sewerage & Drainage

Products

HDPE Pipe For Sewerage & Drainage

Inquiry Now

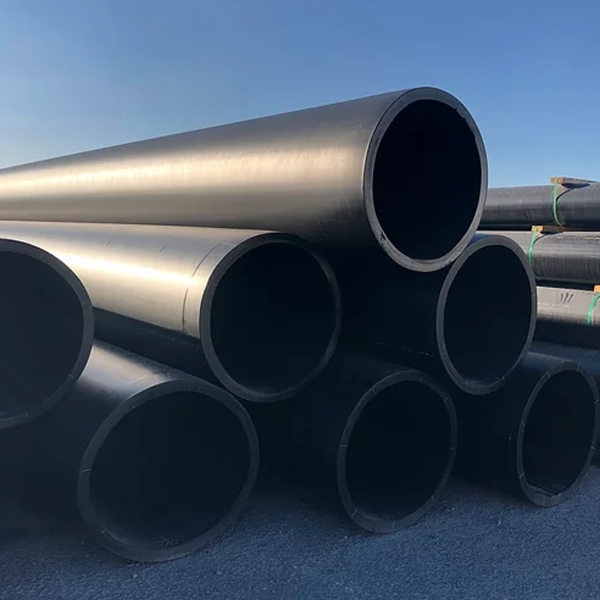

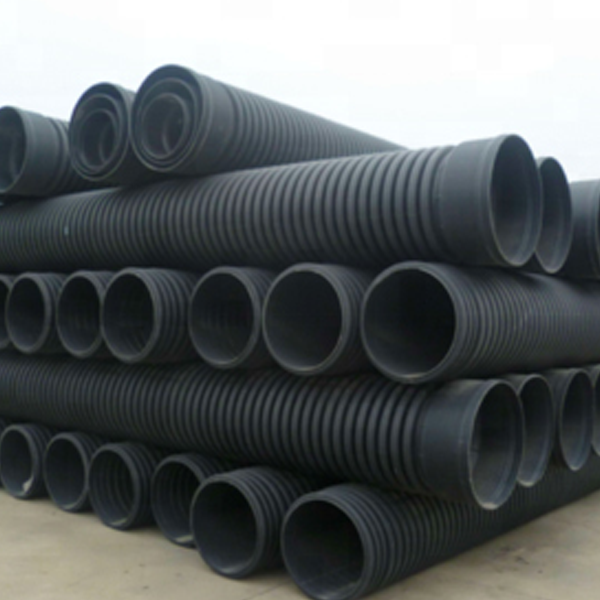

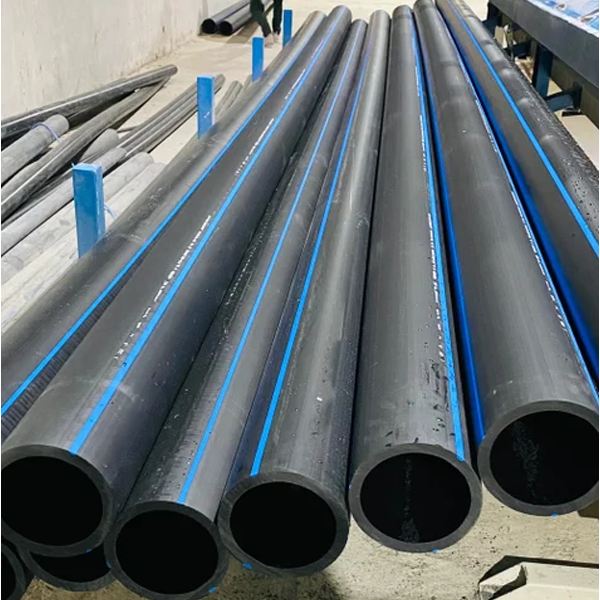

HDPE Pipe For Sewerage & Drainage
HDPE Pipe For Sewerage & Drainage
HDPE Pipe For Sewerage & Drainage
HDPE Pipe For Sewerage & Drainage
  • Diameter: DN20-2000mm (1/2 inch-80 inch).
  • Standard Dimension Ratio: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
  • Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.
  • Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
  • Delivery: 5-10 days depending on the total quantity.
  • Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.
  • Customization: Specifications and sizes can be customized according to requirements.

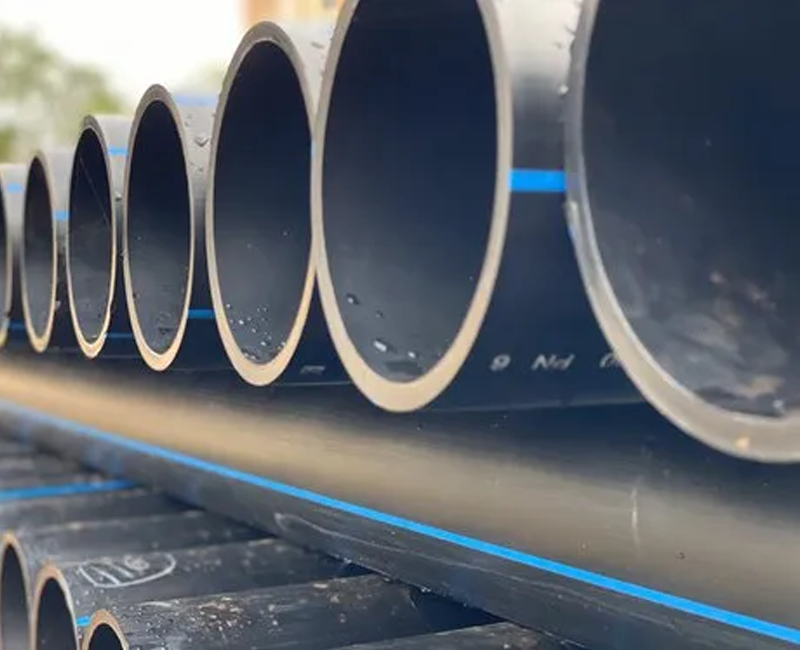

HDPE Drainage Pipe Feature

HDPE Drainage Pipe Feature

  • HDPE pipes offer impact resistance and durability for high pressure applications.
  • PE 100 pipe has excellent wear resistance and scratch resistance, and can keep the surface intact even under harsh conditions.
  • HDPE drainage pipes have strong impact resistance, effectively resist external physical damage and extend service life.
  • HDPE sewer pipes are smooth, have low friction resistance, are easy to install and maintain.
  • HDPE pipes are made from non-toxic and recyclable materials with a lower carbon footprint.

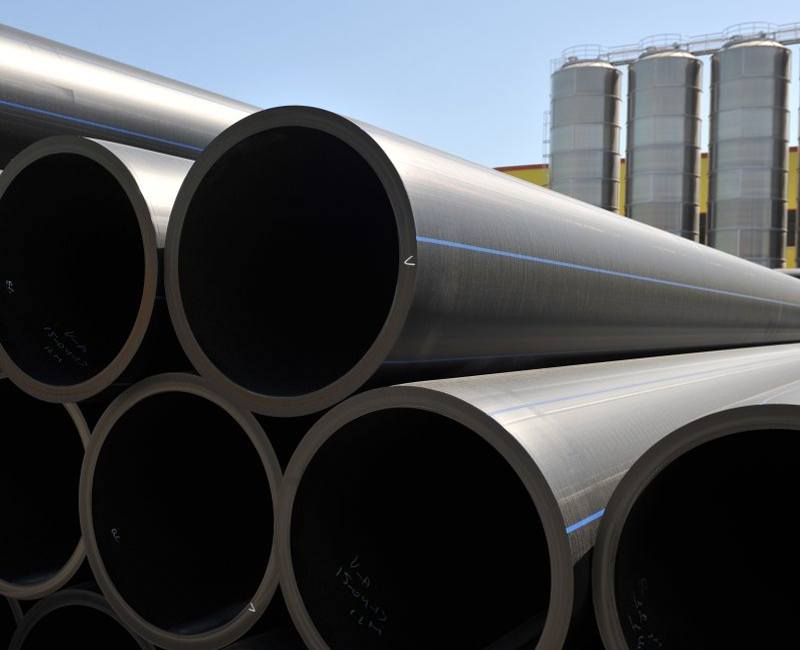

HDPE Sewer Pipe Application

HDPE Sewer Pipe Application

  • HDPE drainage pipes can resist corrosion by acids, alkalis, salts and a variety of chemical substances, and are suitable for the discharge of urban sewage and industrial wastewater.
  • HDPE drainage pipes are suitable for rainwater discharge in urban roads, residential areas, squares and other areas.
  • HDPE sewage pipe is suitable for piping systems that discharge corrosive industrial wastewater in chemical plants, pharmaceutical plants, food plants, etc.
  • PE100 pipe is used to remove water from tunnels and underground passages.
  • HDPE pipes are used in sewage and drainage systems of high-rise buildings, underground garages, and commercial complexes.

Specification & Dimension

ASTM F714 SDR
SDR 33
SDR 26
SDR 21
SDR 17
SDR 13.6
SDR 11
SDR 9
SDR 7.4
Nominal Pressure (PE 100) PN5 (0.5Mpa) PN6 (0.6Mpa) PN8 (0.8Mpa) PN10 (1.0Mpa) PN12.5 (1.25Mpa) PN16 (1.6Mpa) PN20 (2.0Mpa) PN25 (2.5Mpa)
Nominal Size DN (mm) Equiv Size (in) Wall Thickness(mm)
16 2 2.3
20 0.79 1.5 2 2.3 3
25 0.98 0.76 0.8 1.2 1.5 2 2.3 3 3.5
32 1.26 0.97 1 1.5 2 2.4 3 3.6 4.4
40 1.57 1.21 1.2 2 2.4 3 3.7 4.5 5.5
50 1.97 1.52 2 2.4 3 3.7 4.6 5.6 6.9
63 2.48 1.91 2.5 3 3.8 4.7 5.8 7.1 8.6
75 2.95 2.27 2.9 3.6 4.5 5.6 6.8 8.4 10.3
90 3.54 2.73 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4.33 3.33 4.2 5.3 6.6 8.1 10 12.3 15.1
125 4.92 3.79 4.8 6 7.4 9.2 11.4 14 17.1
140 5.51 4.24 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6.3 4.85 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 7.09 5.45 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 7.87 6.06 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8.86 6.82 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 9.84 7.58 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 11.02 8.48 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12.4 9.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 13.98 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 15.75 12.3 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 17.72 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 19.69 15.3 19.1 23.9 29.7 36.8 45.4 55.8 67.6
560 22.05 17.2 21.4 26.7 33.2 41.2 50.8 62.5 75.7
630 24.8 19.3 24.1 30 37.4 46.3 57.2 70.3 85.1
710 27.95 21.8 27.2 33.9 42.1 52.2 64.5 79.3 95.9
800 31.5 24.5 30.6 38.1 47.4 58.8 72.6 89.3
900 35.43 27.6 34.4 42.9 53.3 66.2 81.7
1000 39.37 30.6 38.2 47.7 59.3 72.5 90.2
1200 47.24 36.7 45.9 57.2 67.9 88.2
1400 55.12 42.9 53.5 66.7 82.4 102.9
1600 62.99 61.2 76.2 94.1 117.6
1800 70.86 69.1 85.7 105.9
2000 78.74 76.9 95.2 117.6

HDPE Irrigation Pipe Introduction

Products details information
Company/Factory strength
Product name High Density Polyethylene (HDPE) Pipe for Sewerage & Drainage Production Capacity 200*40ft containers/month
Brand Abbonite Plastics Pvt. Ltd. HDPE Pipe(or OEM) Sample Free sample available
Dia. ranges DN20-2000mm(1/2 inch-80 inch) Delivery time 5-10 days, depending on the quantity
Pressure Class SDR17 ~ SDR6; PN10 ~ PN32 Test/Inspection National standard laboratory, Pre-delivery inspection
Standards ISO 4437, ASTM D3035, ASTM D2513, EN 1555, GB/T 15558, AS/NZS 4130, GOST 18599 Certificates ISO9001, ISO14001, ISO45001, CE...
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Management effective 8S management system
Color black with blue inner, or other colors you want Warranty 60 years with normal use
Packing 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fittings(customizable) Quality QA & QC system, Ensure traceability of each process
Application Water treatment, Wastewater Discharge, Sewage disposal... Employees More than 200
Matching products Butt fusion hdpe Pipe fittings, Socket fusion hdpe pipe fittings, Electrofusion hdpe pipe fittings, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

HDPE Pipe Indicator

DN/ID
Min. Average Inner Diameter
Min. Laminated Wall Thickness
Min. Inner Wall Thickness
Min. Outer Wall Thickness
Min. Connection Length
100 95 1 0.8 0.7 32
125 120 1.2 1 0.8 38
150 145 1.3 1 0.8 43
200 195 1.5 1.1 0.9 54
225 220 1.7 1.4 0.9 55
250 245 1.8 1.5 1 59
300 294 2 1.7 1 64
400 392 2.5 2.3 1.4 74
500 490 3 3 1.8 85
600 588 3.5 3.5 2.1 96
800 785 4.5 4.5 2.7 118
1000 985 5 5 3 140
1200 1185 5 5 3 162

HDPE Pipe Advantages

1. Versatile Applications
Answer :- Abbonite Plastics Pvt. Ltd. PE pipes are widely used across multiple sectors, including water supply, gas distribution, sewage systems, irrigation, and industrial piping.
2. Long Service Life & High Flow Efficiency
Answer :- Designed for longevity, PE HDPE pipes provide minimal friction loss and high flow efficiency, with a service life of 50–60 years or more under normal conditions.
3. Easy to Install & Transport
Answer :- Lightweight and flexible, Abbonite Plastics Pvt. Ltd. PE HDPE pipes are easy to handle and install, reducing overall labor and transportation costs while accelerating project timelines.
4. Top-Notch Strength & Toughness
Answer :- Engineered for resilience, these pipes withstand high pressure and tough environmental conditions, ensuring stable performance in demanding applications.
5. Minimal Maintenance
Answer :- Resistant to rust, corrosion, scaling, and chemical erosion, PE HDPE pipes require very little maintenance, leading to long-term operational savings.
6. Exceptional Flexibility
Answer :- With a bending radius up to 30 times smaller than traditional pipes, PE HDPE pipes can adapt to varied terrain and tight spaces without cracking or compromising integrity.
7. Competitive Pricing
Answer :- Abbonite Plastics Pvt. Ltd. offers cost-effective PE HDPE pipe solutions, tailored to your specific project requirements without compromising quality.

Precision-Engineered Pipes and Fittings for Every Application

Abbonite Plastics Pvt. Ltd. combines ISO-certified quality and cutting-edge technology to produce HDPE, MDPE, PPR pipes, and advanced electrofusion fittings. Our focus on premium materials ensures products that meet global standards while offering excellent value in Indian markets and beyond.
