Socket Fusion HDPE Pipe Fittings

Products

Socket Fusion HDPE Pipe Fittings

Inquiry Now

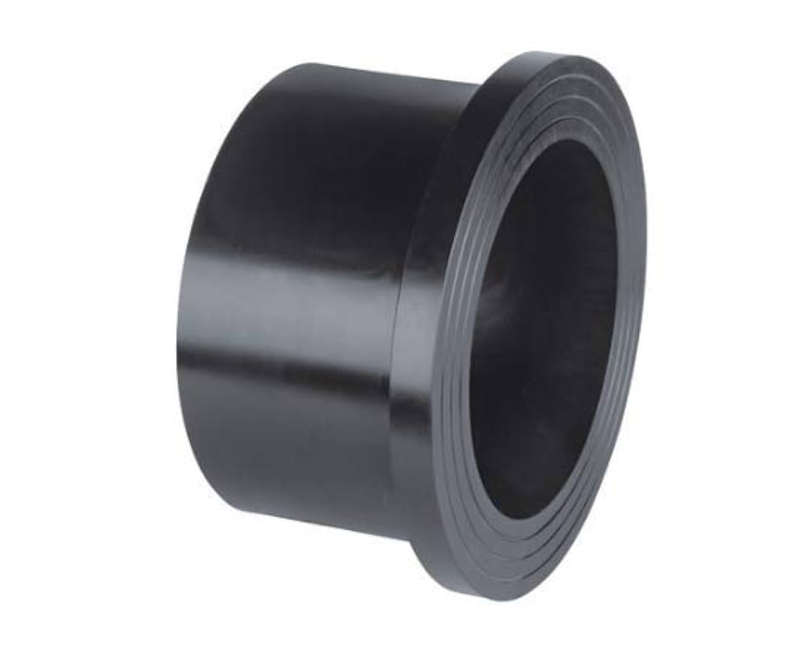

Socket Flange-HDPE Pipe Fittings

Socket Flange-HDPE Pipe Fittings

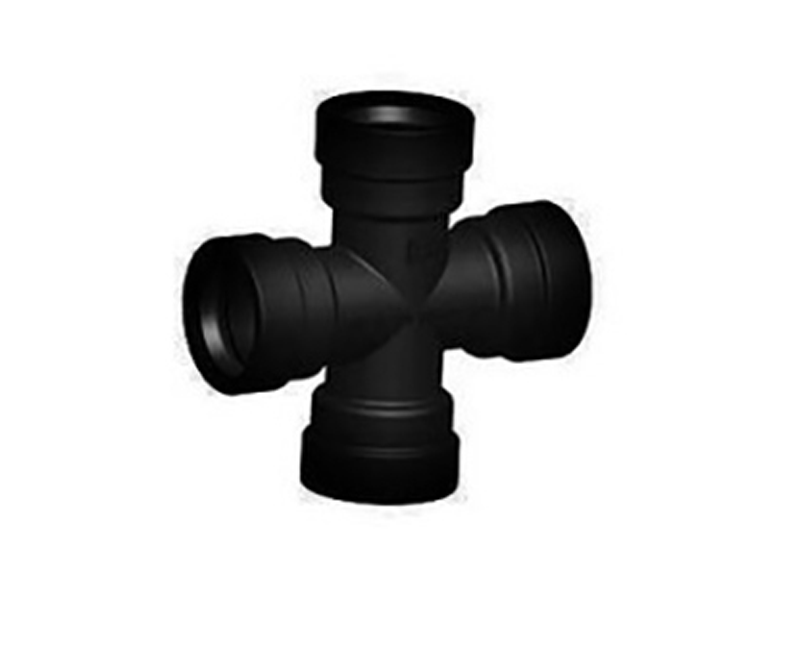

Socket Type Cross

Socket Type Cross

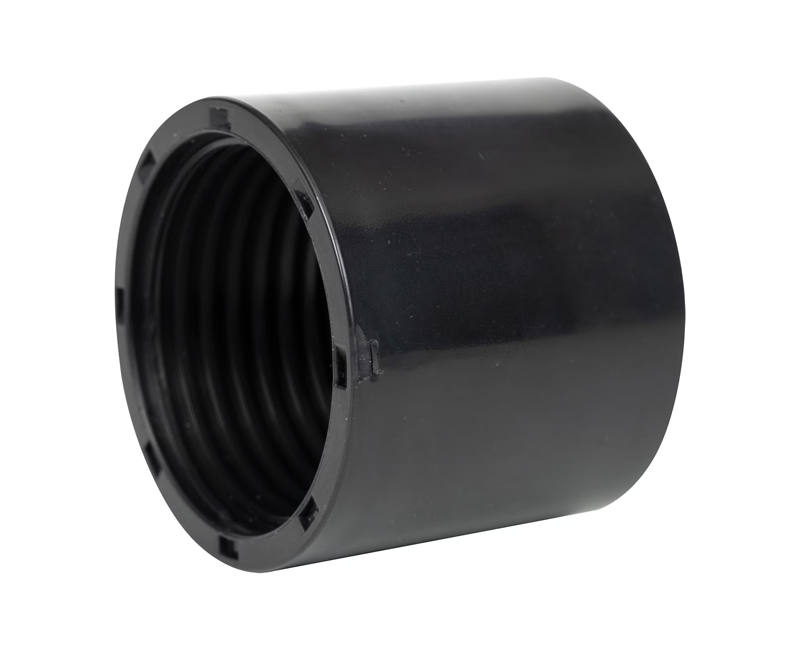

Socket End Cap

Socket End Cap

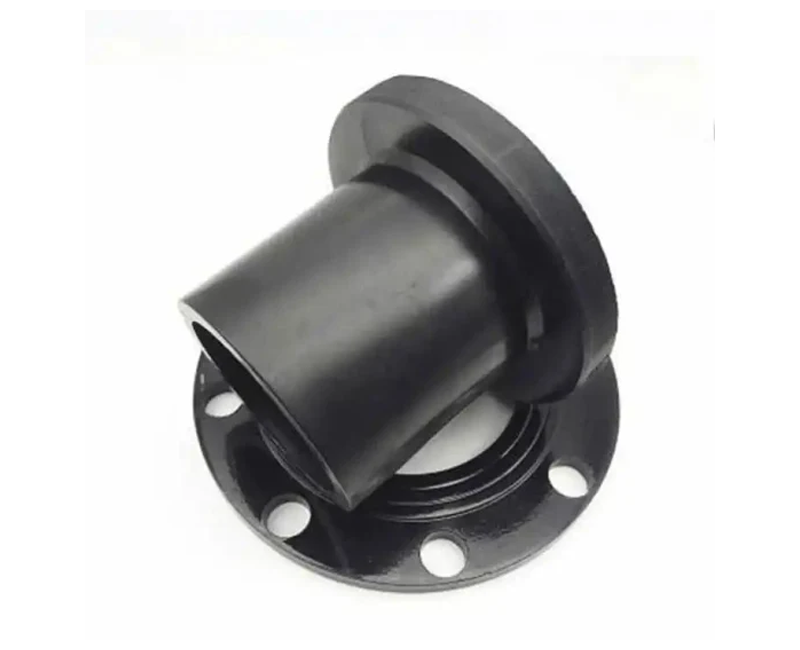

Socket Flange Piece

Socket Flange Piece

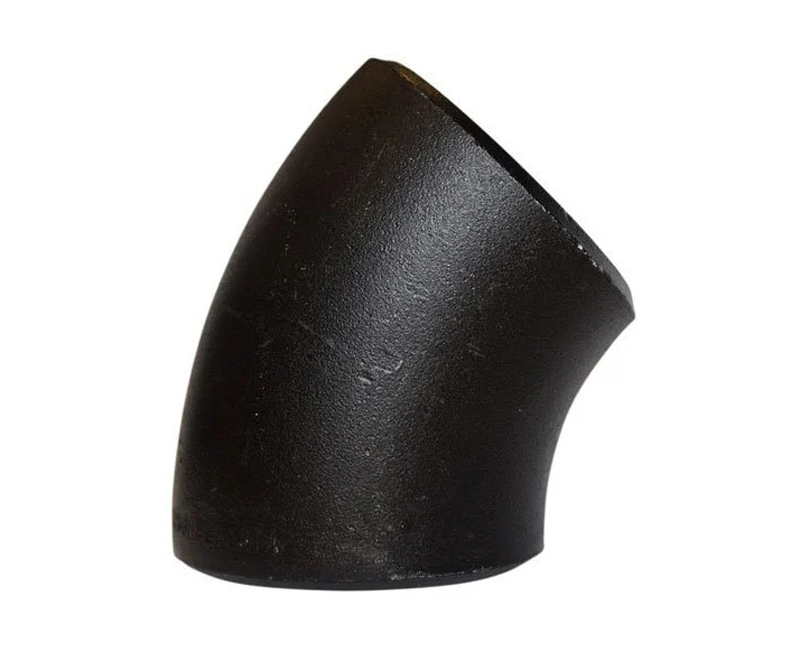

Socket Type 45 Degree Elbow

Socket Type 45 Degree Elbow

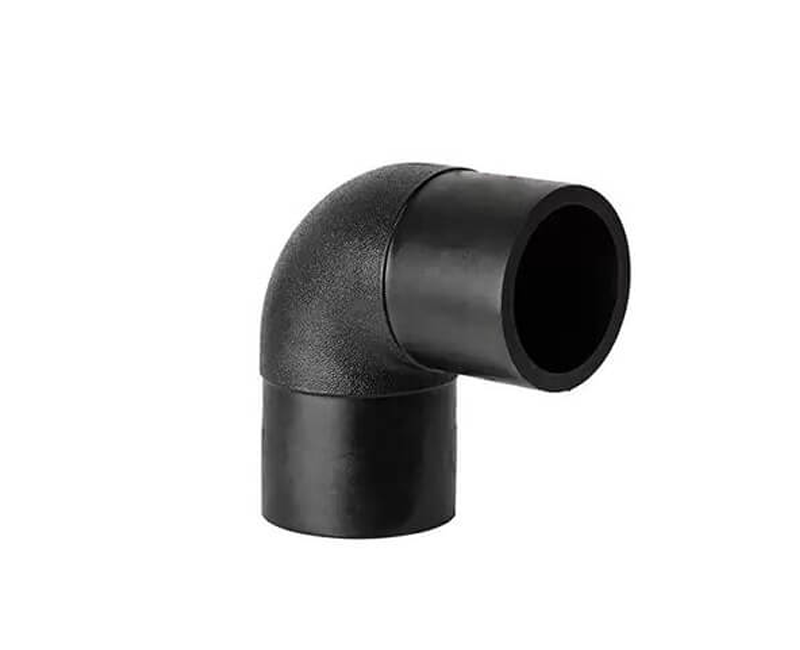

Socket Fusion 90 Degree Elbow

Socket Fusion 90 Degree Elbow

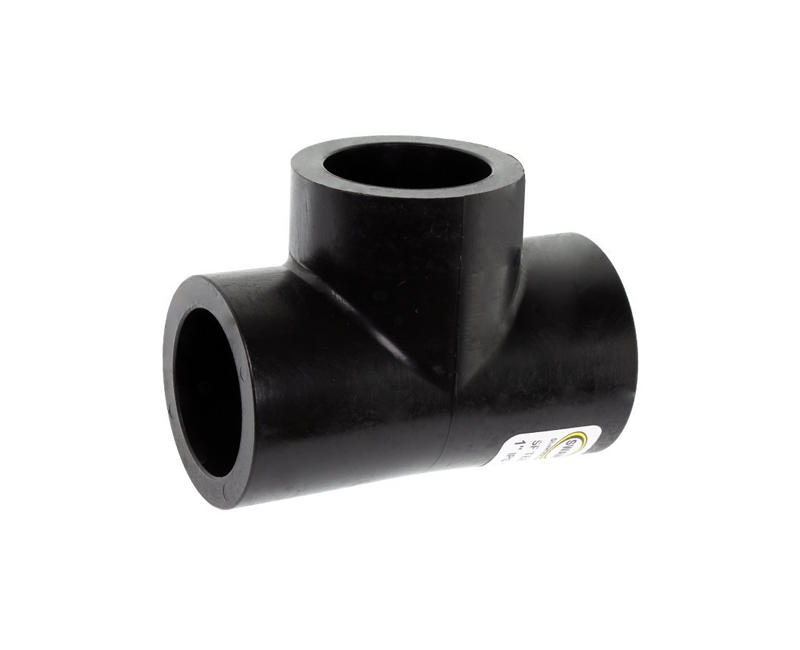

Socket Fusion Tee

Socket Fusion Tee

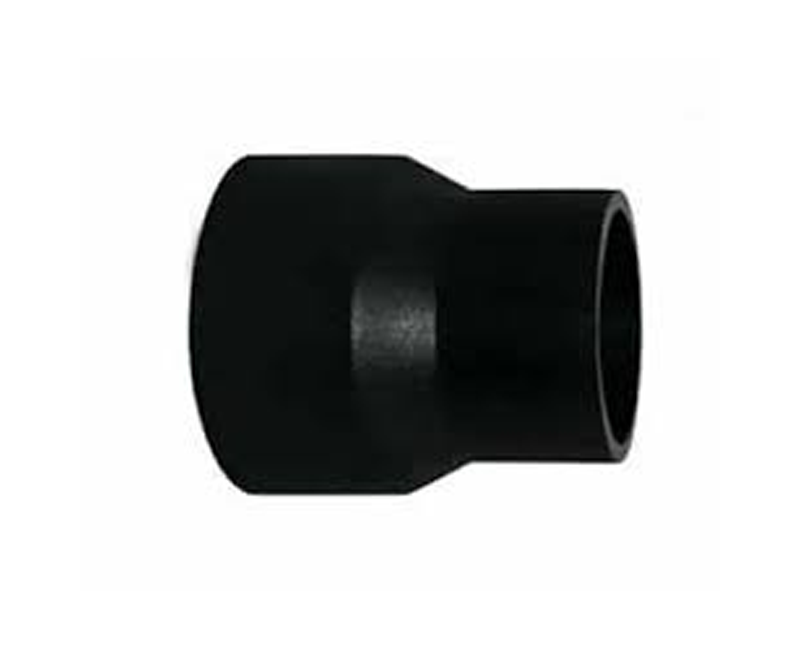

Socket Fusion Straight Coupling

Socket Fusion Straight Coupling

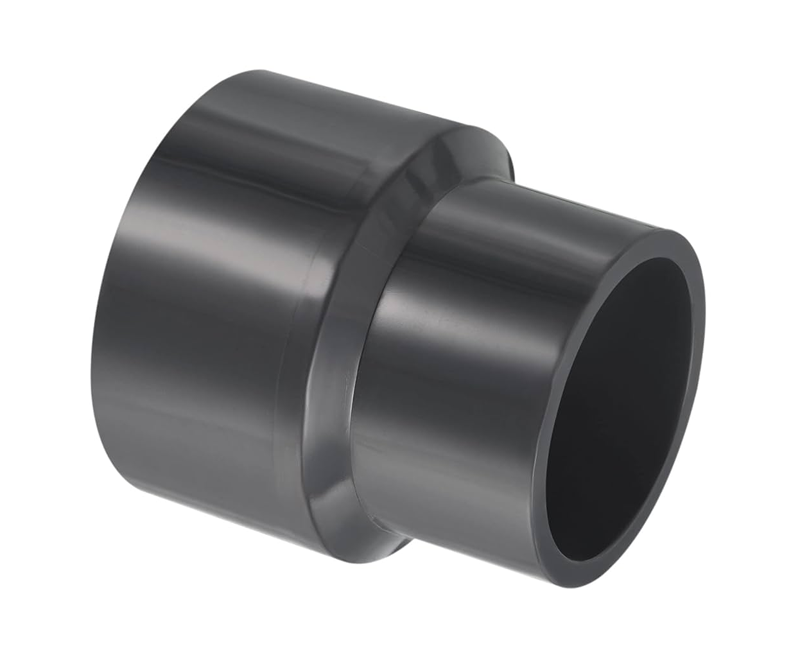

Socket Type Reducer Direct

Socket Type Reducer Direct

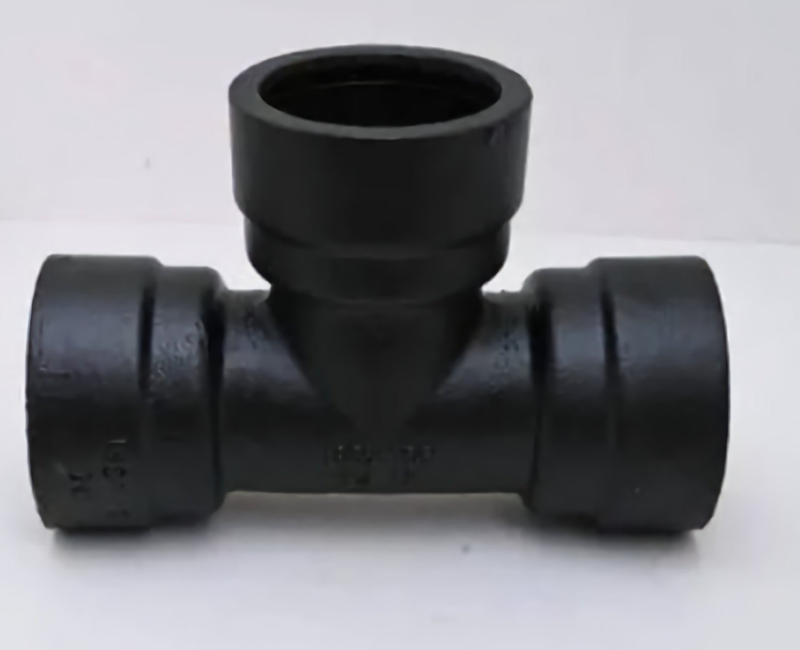

Socket Fusion Reducing Tee

Socket Fusion Reducing Tee

  • Socket fusion HDPE pipe fittings are specialized components used to connect HDPE (high-density polyethylene) pipes through a reliable butt fusion process. In the socket fusion process, both the pipe and the fitting are heated and then connected by plugging, forming a strong, reliable, and uniform connection without the use of additional adhesives or mechanical fasteners.
  • Common socket fusion HDPE pipe fittings are elbow, tee, HDPE flange and flange piece, cross tee, end cap, and others. Socket fusion is especially suitable for systems requiring long service life, minimal maintenance, and resistance to pressure or thermal expansion.
Socket Fusion HDPE Pipe Fittings Feature

Socket Fusion HDPE Pipe Fittings Feature

  • Socket fusion HDPE pipe fittings have excellent impact resistance and an expected service life of up to 60 years.
  • Socket fusion can form a uniform bond between HDPE pipe and fittings without gaskets or solvents, forming a firm and leak-free connection to maintain long-term and stable operation of PE or HDPE pipes.
  • Socket fusion HDPE pipe fittings are suitable for both low and high pressure systems and perform well in varying temperature conditions.
  • PE/HDPE pipe and fittings are resistant to chemical corrosion, and there will be no rust, scaling, or biological growth inside the PE pipe.
  • Socket fusion HDPE pipe fittings have high mechanical strength, high impact resistance even at low temperatures, and excellent tensile strength and flexibility.
  • Socket fusion HDPE pipes are lightweight and easy to transport, handle and install, making them ideal for confined areas and trenchless installations.

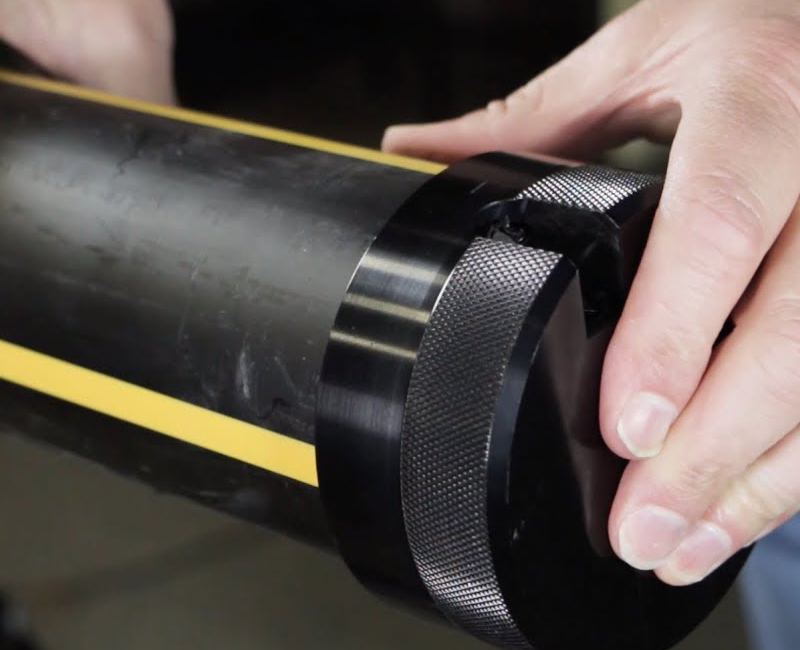

Socket Fusion HDPE Fittings Application

Socket Fusion HDPE Fittings Application

  • Socket fusion HDPE pipe fittings are used in municipal and rural water supply for drinking water services, irrigation and agricultural water supply systems.
  • Socket type HDPE pipe fittings are suitable for natural gas and liquefied petroleum gas pipelines, with excellent sealing performance, and are the first choice for small diameter gas pipelines.
  • Socket fusion PE pipe fittings are suitable for domestic and industrial wastewater transportation, septic tank systems and underground drainage networks.
  • Socket tittings for HDPE pipe can be used for conveying corrosive fluids and slurries in chemical systems.
  • Socket fusion HDPE pipe fittings are ideal for transporting slurries and minerals due to their excellent abrasion resistance.
  • Socket fusion HDPE pipe fittings can also be used to protect underground electrical and fiber optic cables and are suitable for non-pressure piping systems where a durable, waterproof joint is required.

Specification & Dimension

Name Specifications Size Color Material
Socket Flange FL40–FL110 Metric & Custom Black HDPE
Socket Flange Piece 40–1200 Metric & Custom Black HDPE
Socket Type 45 Degree Elbow T20*45°–T110*45° Metric & Custom Black HDPE
Socket Type Cross 40–1200 Metric & Custom Black HDPE
Socket Type 90 Degree Elbow L20*90°–L110*90° Metric & Custom Black HDPE
Socket Type Equal Diameter Tee T20–T110 Metric & Custom Black HDPE
Socket Type Equal Diameter Direct S20–S110 Metric & Custom Black HDPE
Socket End Cap D20–D110 Metric & Custom Black HDPE
Socket Type Reducer Direct S25*20–S110*90 Metric & Custom Black HDPE
Socket Type Reducing Tee T20*20–T110*90 Metric & Custom Black HDPE
Other Customization sizes

Precision-Engineered Pipes and Fittings for Every Application

Abbonite Plastics Pvt. Ltd. combines ISO-certified quality and cutting-edge technology to produce HDPE, MDPE, PPR pipes, and advanced electrofusion fittings. Our focus on premium materials ensures products that meet global standards while offering excellent value in Indian markets and beyond.
