HDPE Pipe For Natural Gas & Oil

Products

HDPE Pipe for Natural Gas & Oil

Inquiry Now
HDPE Pipe For Natural Gas & Oil
HDPE Pipe For Natural Gas & Oil
HDPE Pipe For Natural Gas & Oil
HDPE Pipe For Natural Gas & Oil
  • Diameter: DN20-DN630mm (1/2 inch-24 inch).
  • Standard Dimension Ratio: SDR17.6, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
  • Pressure Class: PN10, PN12.5, PN16, PN20, PN25, PN32
  • Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
  • Delivery: 5-10 days depending on the total quantity.
  • Color: black with yellow stripes
  • Customization: Specifications and sizes can be customized according to requirements.

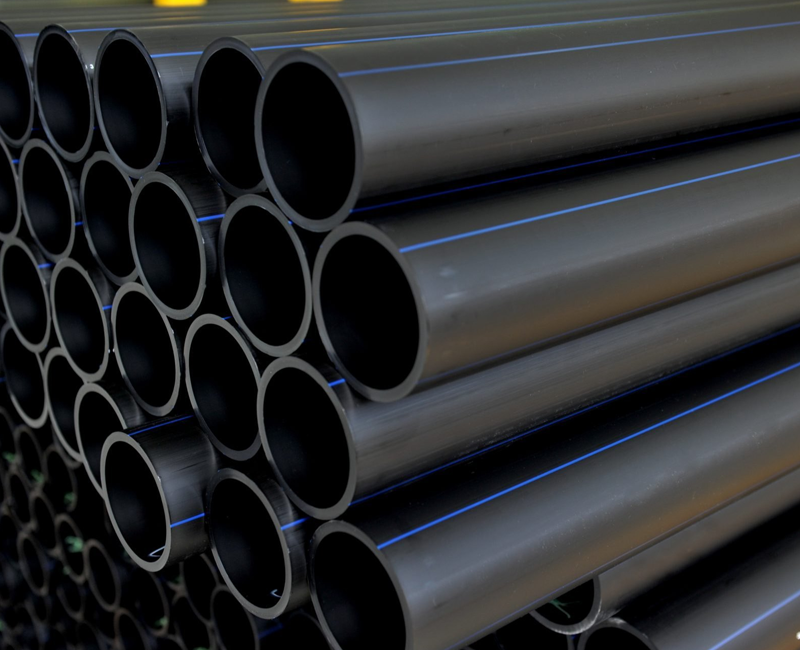

HDPE Gas Pipe Feature

HDPE Gas Pipe Feature

  • HDPE pipes offer impact resistance and durability for high pressure applications.
  • PE 100 pipe has excellent wear resistance and scratch resistance, and can keep the surface intact even under harsh conditions.
  • HDPE gas pipes have strong impact resistance, effectively resist external physical damage and extend service life.
  • HDPE gas pipes are smooth, have low friction resistance, are easy to install and maintain.
  • HDPE pipes are made from non-toxic and recyclable materials with a lower carbon footprint.

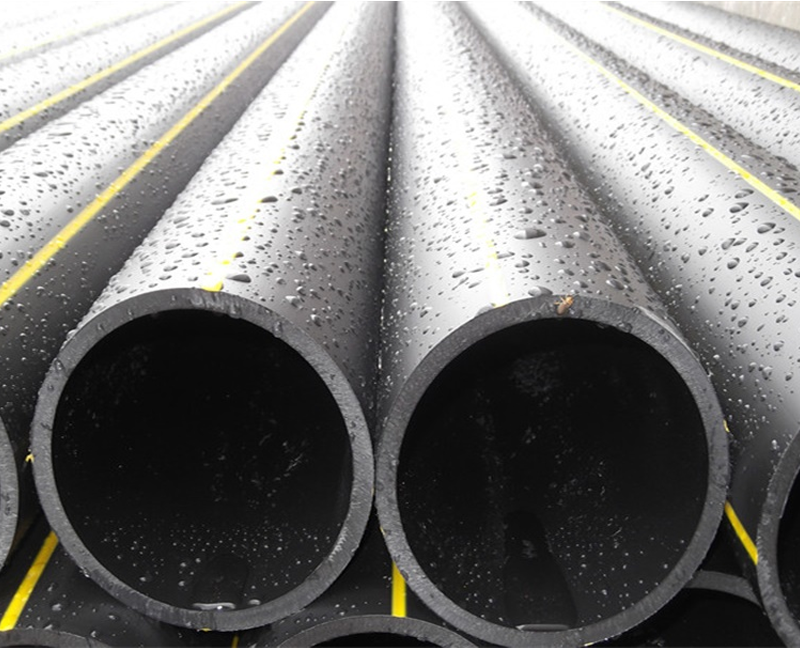

HDPE Gas Pipe Application

HDPE Gas Pipe Application

  • HDPE pipe is used in medium and low pressure natural gas transmission systems in cities, industrial parks or villages. It is safe, reliable and corrosion-resistant.
  • HDPE gas pipe is used in the gathering and transportation network of crude oil, natural gas, mud and other media in oil fields or gas fields.
  • HDPE gas pipe is used in unconventional energy mining areas to transport processed gas or associated liquids.
  • High-density polyethylene pipe is used in unconventional energy mining areas to transport processed gas or associated liquids.
  • PE100 pipe is used as connecting pipe between gas pressure regulation, gas storage and gas distribution facilities.

Specification & Dimension

Nominal Size (DN: mm)
SDR17.6
SDR17
SDR13.6
SDR11
SDR9
16 2.3 3
20 2.3 3
25 2.3 2.3 3
32 2.3 2.3 2.4 3 3.6
40 2.3 2.4 3 3.7 4.5
50 2.9 3 3.7 4.6 5.6
63 3.6 3.8 4.7 5.8 7.1
75 4.3 4.5 5.6 6.8 8.4
90 5.2 5.4 6.7 8.2 10.1
110 6.3 6.6 8.1 10 12.3
125 7.1 7.4 9.2 11.4 14
140 8 8.3 10.3 12.7 15.7
160 9.1 9.5 11.8 14.6 17.9
180 10.3 10.7 13.3 16.4 20.1
200 11.4 11.9 14.7 18.2 22.4
225 12.8 13.4 16.6 20.5 25.2
250 14.2 14.8 18.4 22.7 27.9
280 15.9 16.6 20.6 25.4 31.2
315 17.9 18.7 23.2 28.6 35.2
355 20.2 21.1 26.1 32.2 39.7
400 22.8 23.7 29.4 36.4 44.7
450 25.6 26.7 33.1 40.9 50.3
500 28.4 29.7 36.8 45.5 55.8
560 31.9 33.2 41.2 50.9 62.5
630 35.8 37.4 46.3 57.3 70.3

HDPE Irrigation Pipe Introduction

Products details information Company/Factory strength
Product name High Density Polyethylene (HDPE) Pipe for Natural Gas & Oil Production Capacity 200*40ft containers/month
Brand Abbonite Plastics Pvt. Ltd. HDPE Pipe(or OEM) Sample Free sample available
Dia. ranges DN20-630mm(1/2 inch-24 inch) Delivery time 5-10 days, depending on the quantity
Pressure Class SDR17 to SDR6; PN10 to PN32 Test/inspection National standard laboratory, Pre-delivery inspection
Standards ISO 4437, ASTM D3035, ASTM D2513, EN 1555, GB/T 15558, AS/NZS 4130, GOST 18599 Certificates ISO9001, ISO14001, ISO45001, CE...
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Management effective 8S management system
Color Black with yellow stripes, or other colors you want Warranty 60 years with normal use
Packing 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fitting(customizable) Quality QA & QC system, Ensure traceability of each process
Application Oil, Natural gas, Methane... No. of employees More than 200
Matching products Butt fusion hdpe Pipe fittings, Socket fusion hdpe pipe fittings, Electrofusion hdpe pipe fittings, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

HDPE Pipe Indicator

Test Item Indicator Test Method
Melt Mass Flow Rate (g/10 min) MFR change before and after processing ≤ 20% GB/T 3682.1-2018
Oxidation Induction Time ≥ 20 min GB/T 19466.6-2009
Longitudinal Retraction Rate ≤ 3% GB/T 6671-2001
Carbon Black Content 2.0% ～ 2.5% GB/T 13021-1991
Carbon Black Dispersion ≤ Grade 3 GB/T 18251-2000
Pigment Dispersion — —
Ash Content ≤ 0.1% GB/T 9345.1-2008
Elongation At Break ≥ 350% GB/T 8004.3-2003
Resistance to Slow Crack Growth
en ≤ 5 mm (Cone Test)		 < 10 mm / 24h GB/T 19279-2003
Resistance to Slow Crack Growth
en ＞ 5 mm (Incision Test)		 No damage, no leakage GB/T 18476-2001
Hydrostatic Pressure Strength
20℃, 100h		 No damage, no leakage GB/T 6111-2003
Hydrostatic Pressure Strength
80℃, 165h		 No damage, no leakage GB/T 6111-2003
Hydrostatic Pressure Strength
280℃, 1000h		 No damage, no leakage GB/T 6111-2003
Note: The above indicators refer to PE pipe material quality control standards.

HDPE Pipe Advantages

1. Versatile Applications
Answer :- Abbonite Plastics Pvt. Ltd. PE pipes are widely used across multiple sectors, including water supply, gas distribution, sewage systems, irrigation, and industrial piping.
2. Long Service Life & High Flow Efficiency
Answer :- Designed for longevity, PE HDPE pipes provide minimal friction loss and high flow efficiency, with a service life of 50–60 years or more under normal conditions.
3. Easy to Install & Transport
Answer :- Lightweight and flexible, Abbonite Plastics Pvt. Ltd. PE HDPE pipes are easy to handle and install, reducing overall labor and transportation costs while accelerating project timelines.
4. Top-Notch Strength & Toughness
Answer :- Engineered for resilience, these pipes withstand high pressure and tough environmental conditions, ensuring stable performance in demanding applications.
5. Minimal Maintenance
Answer :- Resistant to rust, corrosion, scaling, and chemical erosion, PE HDPE pipes require very little maintenance, leading to long-term operational savings.
6. Exceptional Flexibility
Answer :- With a bending radius up to 30 times smaller than traditional pipes, PE HDPE pipes can adapt to varied terrain and tight spaces without cracking or compromising integrity.
7. Competitive Pricing
Answer :- Abbonite Plastics Pvt. Ltd. offers cost-effective PE HDPE pipe solutions, tailored to your specific project requirements without compromising quality.

Precision-Engineered Pipes and Fittings for Every Application

Abbonite Plastics Pvt. Ltd. combines ISO-certified quality and cutting-edge technology to produce HDPE, MDPE, PPR pipes, and advanced electrofusion fittings. Our focus on premium materials ensures products that meet global standards while offering excellent value in Indian markets and beyond.
